Russell Motor Cars: 1912
The lineup for 1912 remained the same as the previous year, the Russell Model R and the Russell-Knight Models 22, 26, and 38.  Electric starters were available for the first time.  This was the first full year of production by the Russell Motor Car Company, which had been formed in 1911.  A February, 1912, Ottawa Journal news item that describes a six-cylinder Russell-Knight limousine suggests that the 6 cylinder model was introduced during 1912.  (It is possible that the article references a not-yet-available car.)

Some changes for 1912:
     crank stays in the 12:00 position
     side body trim runs beneath both doors instead of around each door individually
     headlight forks mount to the fender instead of down to the frame
     front fender inside wall extends further forward to accommodate the headlight fork mount.
     Grey & Davis lights seem to be standard, oil/electric side lamps
     rear inside door handles moved down to top of door panel instead of poking up through the top of the door
     toolboxes no longer on the running board (on "38" and "26" models).  Tools under the seat
     Electric start standard on "38" and "26" models
     Control levers moved inside on the Model "30"

FULL 1912 RUSSELL SPECIFICATIONS AND PRICES

1912 RUSSELL MODEL R "30" SPECIFICATIONS
Engine:
4 cylinder, poppet valve, water cooled, 286 cu.in.
Horsepower:
30 HP
Transmission:
3 speed sliding gear
Wheelbase:
115 inches (7 passenger touring: 120 inches)
Tires:
34 x 4 inches  (7 passenger 36 x 4)
Frame:
pressed steel
Suspension:
front: semi-elliptic, rear: three-quarter elliptic
Colours:
royal blue body & royal blue running gear, optional deep wine/deep wine  or brewster green/brewster green
Body Styles/Prices:
5 pass. Touring $2350, 7 pass. Touring $2500, Torpedo $2450, Torpedo Roadster $2400, Limousine $3400, Landaulet $3450, Berlin (closed) Limousine $3600
Accessories:

Known Serial Numbers:
in the 1700 - 2000 range


1912 RUSSELL-KNIGHT "22" SPECIFICATIONS
Engine:
4 cylinder (3 7/8 X 5 1/8), water cooled, Knight Sleeve Valve, 230 cu. in.
Horsepower:
22 HP  (38 HP R.A.C. testing)
Transmission:
3 speed sliding gear
Wheelbase:
115"
Tires:
34 x 4
Frame:
presssed steel
Suspension:
front: semi-elliptic, rear: three-quarter elliptic
Colours:
royal blue body & royal blue running gear, optional deep wine/deep wine  or brewster green/brewster green
Body Styles/Prices:
 5 Pass. Touring $3000, 5 pass. Toy Tonneau $2850, Limousine $4050, Landaulet $4100, Berlin (closed) Limousine $4250, Torpedo $3100, Torpedo Roadster $3050
Accessories:

Known Serial Numbers:
none, but possibly in the 2100 - 2200 range


1912 RUSSELL-KNIGHT "26" SPECIFICATIONS
Engine:
4 cylinder (4 x 5 1/8), water cooled, Knight Sleeve Valve, 256 cu. in.
Horsepower:
26 HP
Transmission:
3 speed sliding gear
Wheelbase:
122"
Tires:
36 x 4 1/2
Frame:
pressed steel
Suspension:
front: semi-elliptic, rear: three-quarter elliptic
Colours:
royal blue body & royal blue running gear, optional deep wine/deep wine  or brewster green/brewster green
Body Styles/Prices:
5 Pass. Touring $3850, Limousine $4800, Landaulet $4850, Berlin (closed) Limousine $5000, Torpedo $3900, Torpedo Roadster $3850
Accessories:

Known Serial Numbers:
none


1912 RUSSELL-KNIGHT "38" SPECIFICATIONS
Engine:
4 cylinder (4 7/8 X 5 1/8), water cooled, Knight Sleeve Valve, 383 cu. in.
Horsepower:
38 HP  (55 HP R.A.C. testing)
Transmission:
3 speed sliding gear
Wheelbase:
127"
Tires:
front: 36 x 4 1/2   rear: 37 x 5
Frame:
pressed steel
Suspension:
front: semi-elliptic, rear: three-quarter elliptic
Colours:
royal blue body & royal blue running gear, optional deep wine/deep wine  or brewster green/brewster green
Body Styles/Prices:
7 Pass. Touring $5000, Limousine $6000, Landaulet $5850, Berlin (closed) Limousine $6200, Torpedo $5000, Torpedo Roadster $5000
Accessories:

Known Serial Numbers:
none


1912 Russell 30

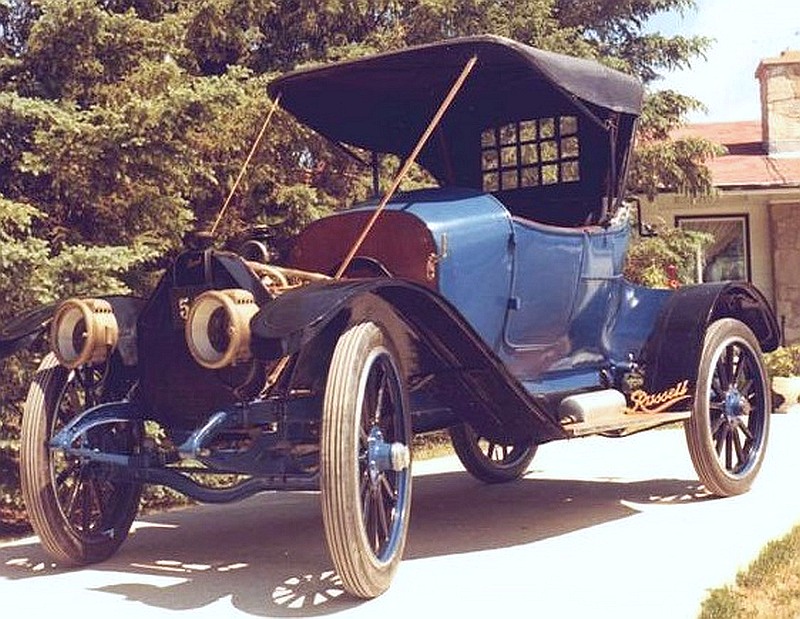

1912 Russell Model R "30" Roadster

1912 Russell 26

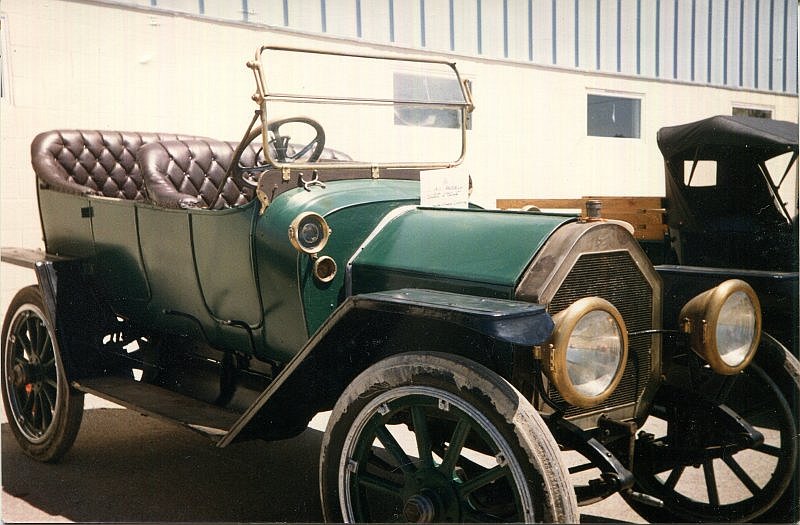

1912 Russell "26" Torpedo Touring

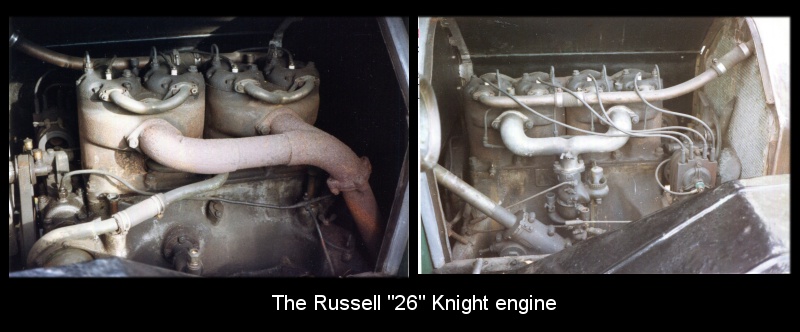

1912 Russell 26 engine
