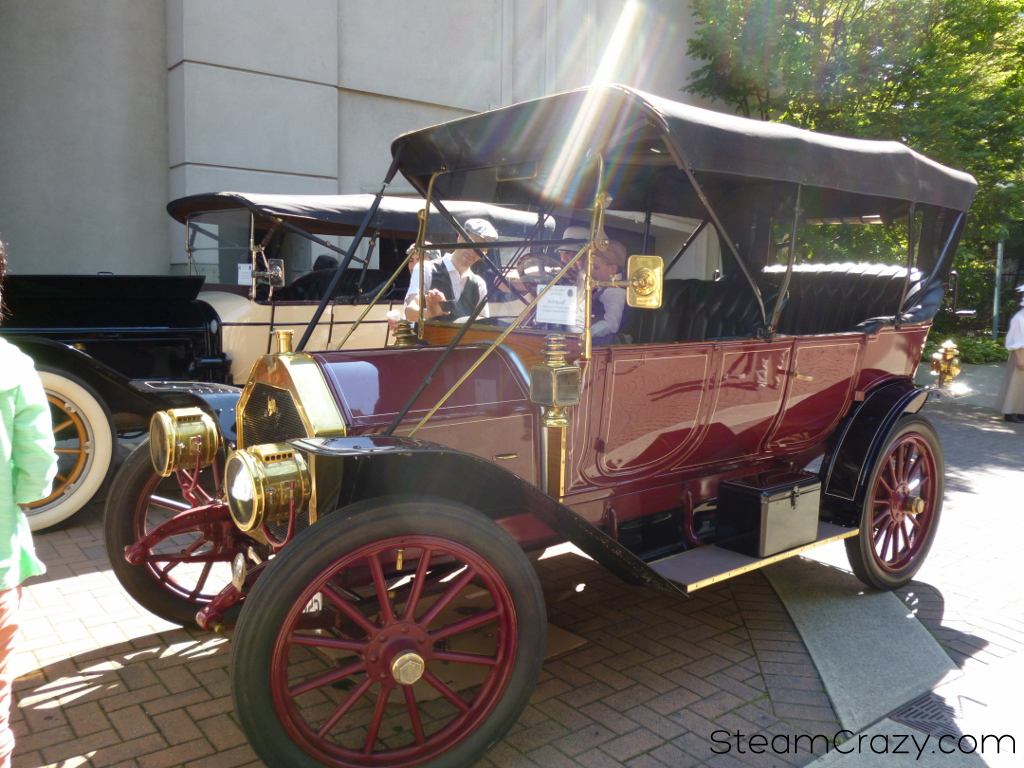

1910 Russell Model R "30"

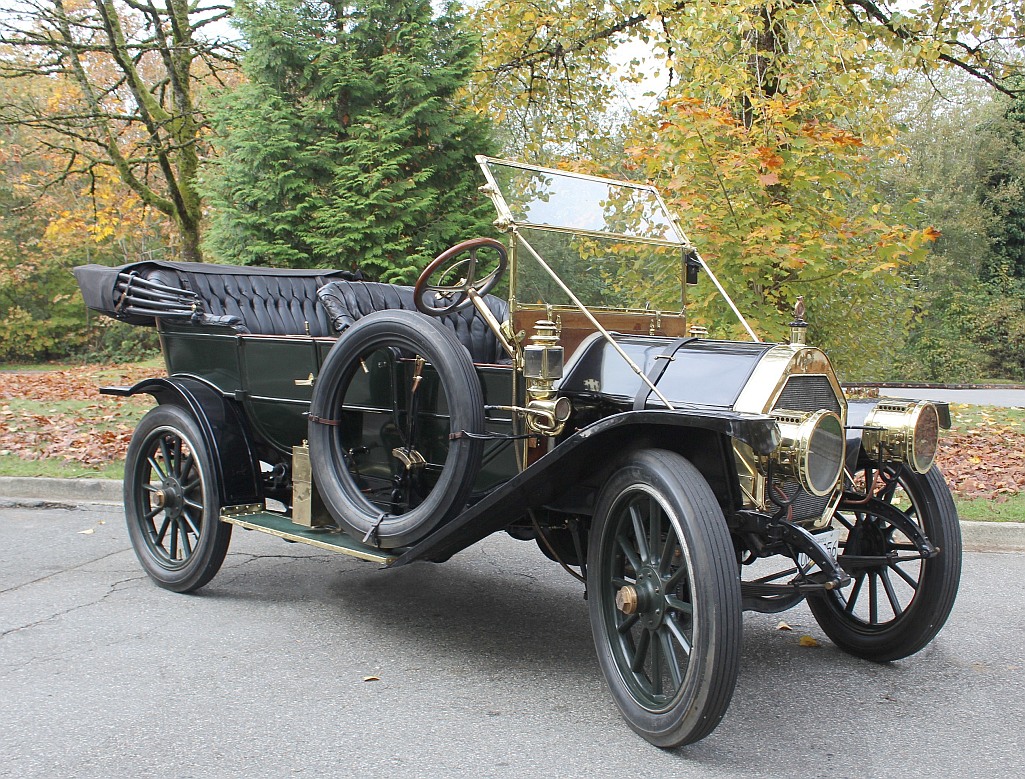

1910 Russell-Knight
"22"
| Russell Motor Cars: 1910 |
|
In 1910 Russell
introduced all new models, the Model R "30" and
the Knight engined Models "22" and "38". In 1909
Russell had purchased the Canadian rights for the
Knight Sleeve Valve motor, after going to England to
study the Royal Auto Club's rigorous testing of the
Daimler built Knight engines. For 1910, Russell
imported complete Daimler built Knight engines for the
Model "22" and "38" cars. The Knight engined
cars featured standard front doors, possibly the first
in North America (the driver's side "door" was
fake). Rushmore headlights with generator or
Prestolite tank were offered.
|
|
|
For more information on
the Knight engines, CLICK HERE
|
| 1910
RUSSELL
MODEL
R "30"
SPECIFICATIONS |
|
| Engine:
|
4 cylinder (4 3/8 X 4 3/4),
poppet valve, water cooled, 286 cu.in. |
| Horsepower:
|
30 HP |
| Transmission:
|
3 speed sliding gear, outside
shift |
| Wheelbase:
|
115 inches (7 passenger
touring: 120 inches) |
| Tires: |
34 x 3 1/2 inches front, 34 x
4 rear. |
| Frame: |
pressed steel |
| Suspension:
|
front: semi-elliptic, rear:
three-quarter elliptic |
| Colours:
|
royal blue/black upholstery
(optional red/red) |
| Body
Styles/Prices: |
5 pass. Touring $2200, 7
pass. Touring $2600, 4 pass. Toy Tonneau $2200 2 pass. Roadster $2200, Open Touring + Limousine body $3350 |
| Accessories:
|
|
| Known Serial
Numbers: |
In the 1200 - 1500 range |
| 1910
RUSSELL-KNIGHT "22"
SPECIFICATIONS |
|
| Engine:
|
4 cylinder (3 7/8 X 5 1/8),
water cooled, Knight Sleeve Valve, 230 cu. in. |
| Horsepower:
|
22 HP (38 HP R.A.C.
testing) |
| Transmission:
|
3 speed sliding gear, outside shift |
| Wheelbase:
|
120" |
| Tires: |
36 x 4 |
| Frame:
|
pressed steel |
| Suspension:
|
front: semi-elliptic, rear: three-quarter elliptic |
| Colours:
|
royal blue/black upholstery (optional red/red) |
| Body
Styles/Prices: |
2 pass. Runabout $3500, 5
Pass. Touring $3500 5 pass. Torpedo $3500, Open Touring + Limousine body $4500 |
| Accessories:
|
|
| Known Serial
Numbers: |
in the 2000 - 2100 range |
| 1910
RUSSELL-KNIGHT "38"
SPECIFICATIONS |
|
| Engine:
|
4 cylinder (4 7/8 X 5 1/8), water cooled, Knight Sleeve Valve, 383 cu. in. |
| Horsepower:
|
38 HP (55 HP R.A.C. testing) |
| Transmission:
|
3 speed sliding gear, outside shift |
| Wheelbase:
|
127" |
| Tires: |
36 x 4 1/2 |
| Frame:
|
pressed steel |
| Suspension:
|
front: semi-elliptic, rear: three-quarter elliptic |
| Colours:
|
royal blue/black upholstery (optional red/red) |
| Body
Styles/Prices: |
7 Pass. Touring $5000, 5
pass. Torpedo $5000 Limousine $6500, Landaulet $6500 |
| Accessories:
|
|
| Known Serial
Numbers: |
none, but possibly in the
3000 - 3025 range |
|
